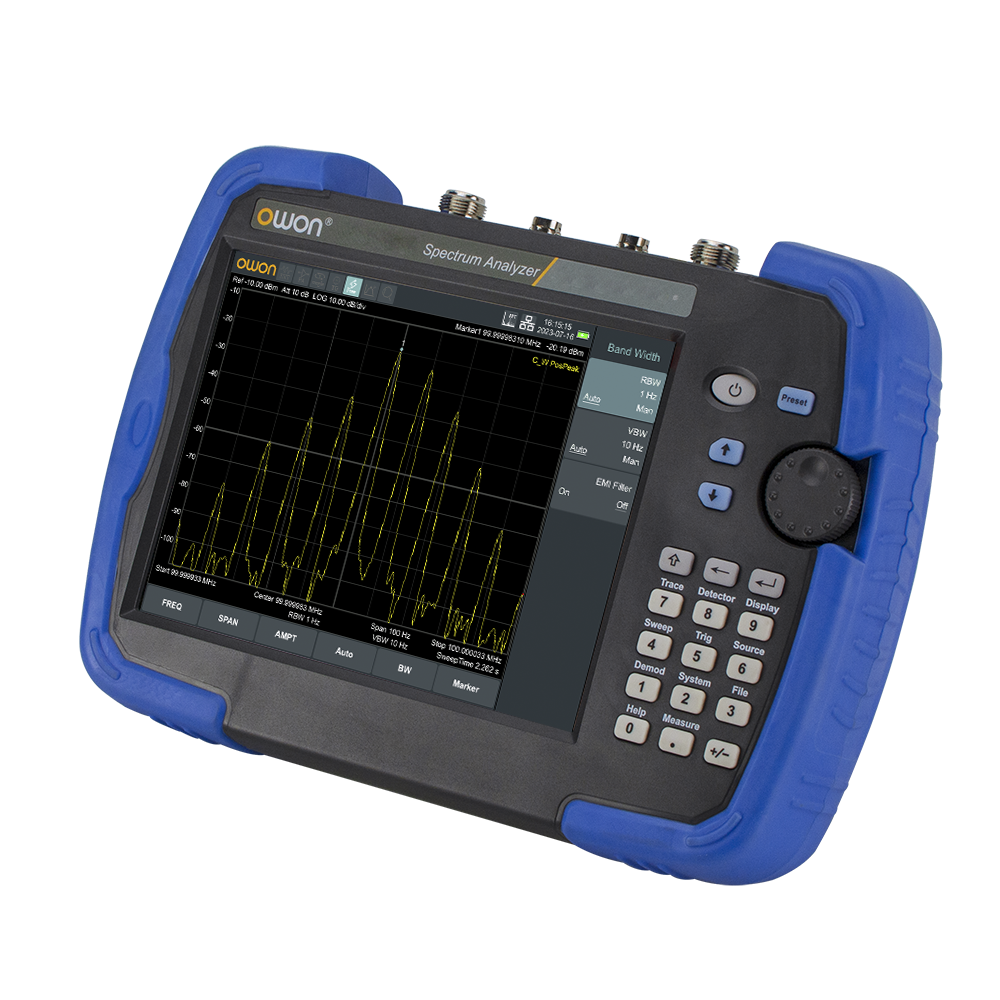

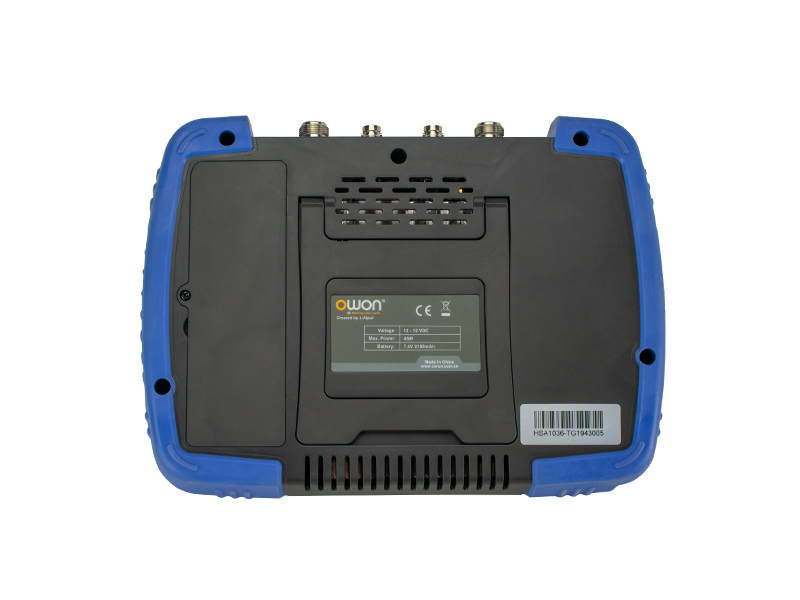

OWON HSA1016/1036/1075 Handheld Spectrum Analyzer

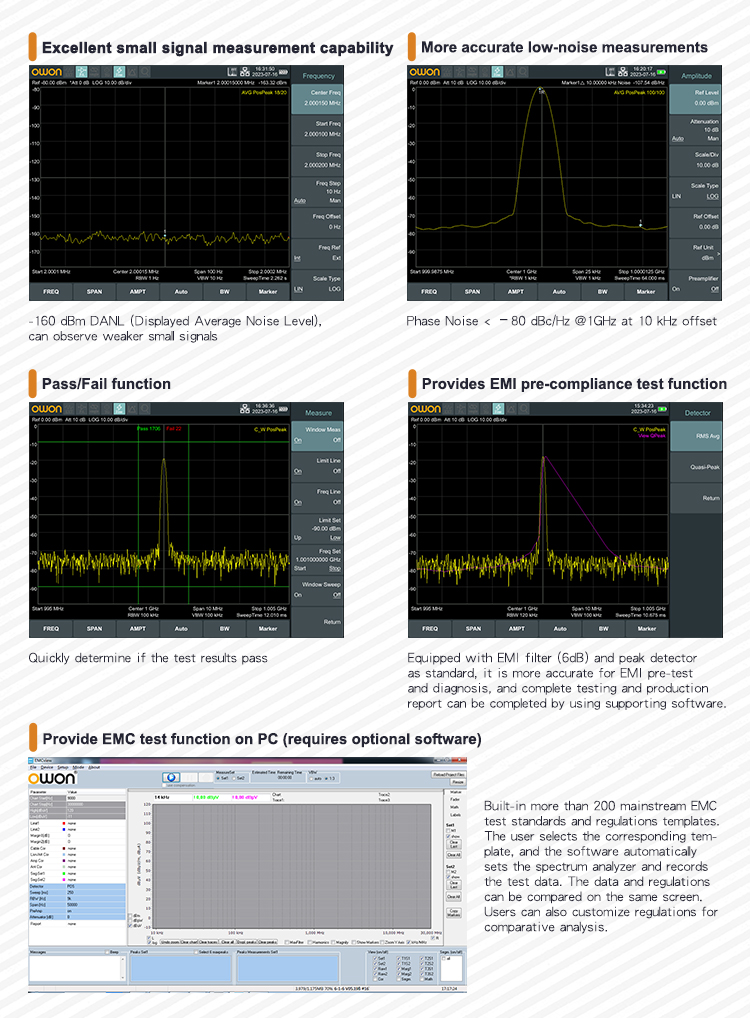

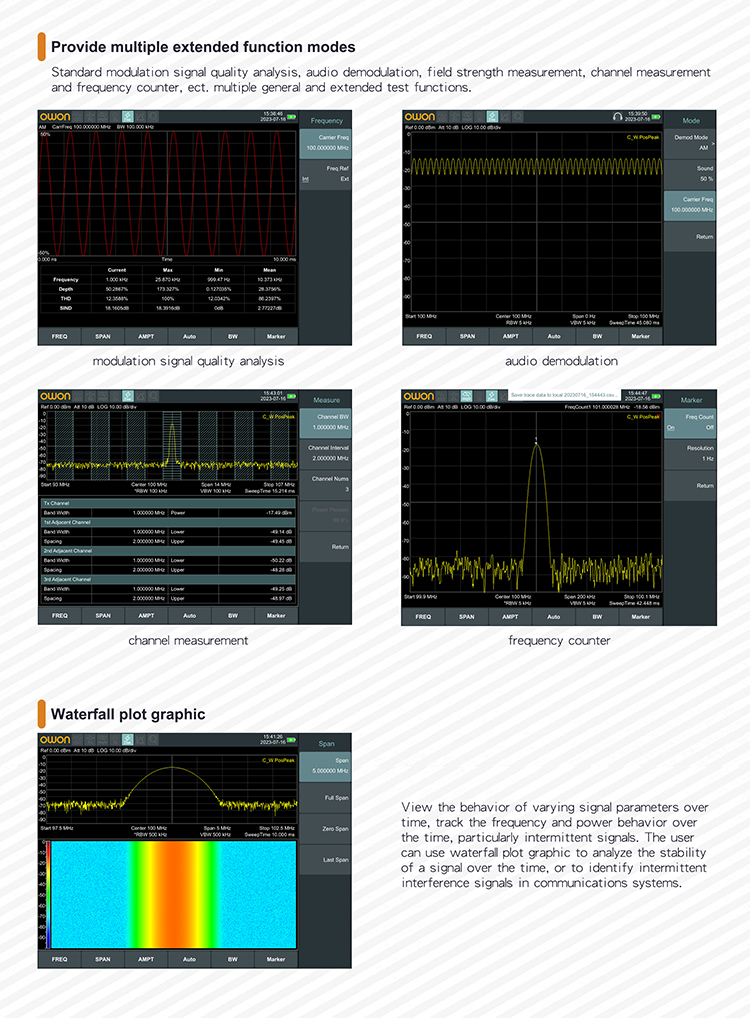

+ Frequency Range from 9 kHz up to7.5 GHz
+ -160dBm Displayed Average Noise Level
+ Phase Noise -106dBc/Hz @1Gz and offset at 10KHz
+ Total Amplitude Accuracy <0.7dB
+ 1Hz Minimum Resolution Bandwidth (RBW)

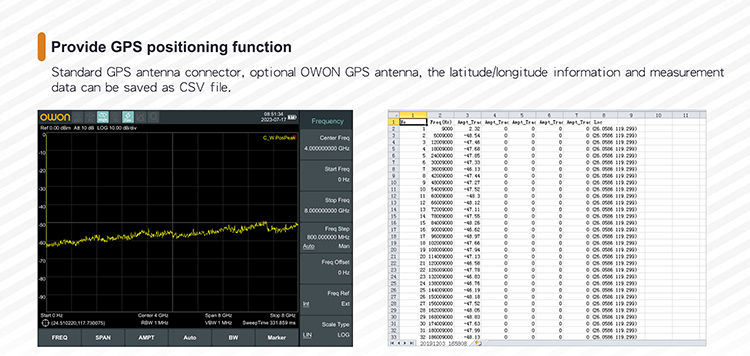

+ Standard GPS receiver
+ EMI Pre-compliance Test Kit
+ Up to 7.5 GHz Tracking Generator Kit
+ 8 inches IPS touchscreen display, wider viewing angle
+ Li-ion battery, operating life upto 4-6 hours
E-mail Us
|
Frequency |
||||||||||
| Frequency Range | HSA1016-TG | 9 kHz to 1.6GHz | ||||||||
| HSA1036-TG | 9 kHz to 3.6GHz | |||||||||
| HSA1075-TG | 9 kHz to 7.5GHz | |||||||||
|
Frequency Span |
||||||||||
|
Span Range |
0 Hz, 100 Hz to max frequency of instrument |
|||||||||
|
Span Uncertainty |
± span / (sweep points-1) |
|||||||||
|
SSB Phase Noise (20℃ to 30℃,fc=1 GHz, RBW=1 kHz,VBW=1 kHz) |
||||||||||
|
Carrier Offset |
10 kHz |
< -106 dBc/Hz (Typical) |
||||||||
|
100 kHz |
< -104 dBc/Hz (Typical) |
|||||||||
|
1 MHz |
< -115 dBc/Hz (Typical) |
|||||||||
|
Bandwidth |
||||||||||
|
Resolution Bandwidth |
1Hz to 1MHz（in 1 -3-5-10 sequence） |
|||||||||
|
RBW Accuracy |
< 5%, typical (RBW ≤ 1 MHz) |
|||||||||
|
Resolutio Filter Shape Factor (60 dB : 3 dB) |
<5: 1 typical (digital and close to Gaussian shape) |
|||||||||
|
Video Bandwidth (VBW) |
10 Hz to 3 MHz |
|||||||||
|
Amplitude and level |
||||||||||
|
Amplitude measurement range |
DANL to +20 dBm, 1 MHz to 3.6 GHz, Preamp Off |
|||||||||
|
Reference Level |
-80 dBm to +30 dBm, 0.1dBm by step |
|||||||||
|
Preamp |
20 dB, nominal, 9 kHz to 3.6 GHz |
|||||||||
Display Average Noise Level (Input Attenuation= 0 dB, Sample Detector ,Trace Average ≥20, 20℃ to 30℃,Input Impedance=50 Ω ,RBW normalizes to 1Hz) |
||||||||||
|
Preamp Off |
9 kHz to 1 MHz |
-95 dBm (Typical), <-88 dBm |
||||||||
|
1 MHz~500 MHz |
-140dBm（Typical)，<-130 dBm |
|||||||||
|
500 MHz~3.6GHz |
-138 dBm (Typical),<-128 dBm |
|||||||||
|
3.6G Hz~6GHz |
-134 dBm (Typical),<-124 dBm |
|||||||||
| 6G Hz~7.5GHz |
-129 dBm (Typical),<-119 dBm |
|||||||||
|
Preamp On |
9 kHz to 1 MHz |
-135 dBm (Typical), <-128 dBm | ||||||||
|
1 MHz~500 MHz |
-160dBm（Typical，<-150 dBm |
|||||||||
|
500 MHz~3.6GHz |
-158 dBm (Typical),<-148 dBm |
|||||||||
|
3.6G Hz~6GHz |
-154 dBm (Typical),<-144 dBm |
|||||||||
|
6G Hz~7.5GHz |
-149 dBm (Typical),<-139 dBm |
|||||||||
|
Frequency response |
||||||||||
|
Preamp Off |
±0.8 dB；±0.4 dB (Typical) |
|||||||||
|
Preamp On |
±0.9 dB；±0.5 dB (Typical) |
|||||||||
|
Difference and Accuracy |
||||||||||
|
Absolute Amplitude Accuracy |
20℃ to 30℃, fc=50 MHz, Span=200 kHz, RBW=10 kHz, VBW=10 kHz, peak detector, 10 dB RF attenuation,95% confidence level Preamp Off ±0.4 dB, input signal level -20 dBm Preamp On ±0.5 dB, input signal level -40 dBm |
|||||||||
|
Tracking Source Output, signal generator |
||||||||||
|
Frequency Range |
HSA1016-TG |
100 kHz to 1.6 GHz |
||||||||
|
HSA1036-TG |
100 kHz to 3.6 GHz |
|||||||||
|
HSA1075-TG |
100 kHz to 7.5 GHz |
|||||||||
|
Output power level range |
-40 dBm to 0 dBm |
|||||||||
|
Output power level resolution |
1 dB |
|||||||||
|
Output flatness |
± 3 dB |
|||||||||
|
Interface |

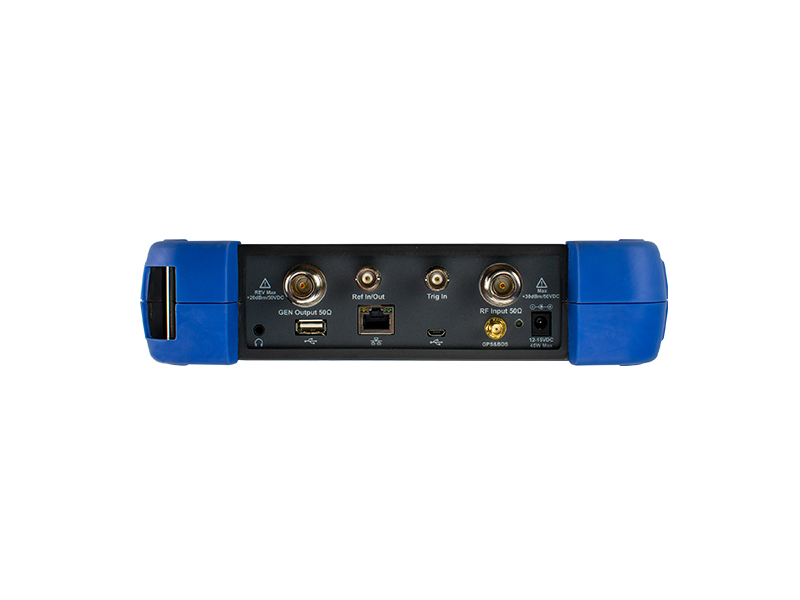

USB Host / USB Device/ LAN |
|||||||||
|
Display |
8 inches TFT LCD | |||||||||
|
Appearance |
||||||||||
|
Dimensions |
265 mm (W) × 190 mm (H) × 58 mm (D) |
|||||||||
|
Weight |
Approx. 2.5 kg (without package) |
|||||||||
- ▶ EMC testing software for HSA Series (options, need to pay to get activation code)
- ▶ Quick Guide for HSA1000 Series Spectrum Analyzer
- ▶ User Manual for HSA1000 Series Handheld Spectrum Analyzer
- ▶ PC software for OWON HSA1000 Series Spectrum Analyzers
- ▶ Programming manual for HSA1000 Series Spectrum Analyzer
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
Adapter -
Carryiing Case(optional) -
Stand Holder -

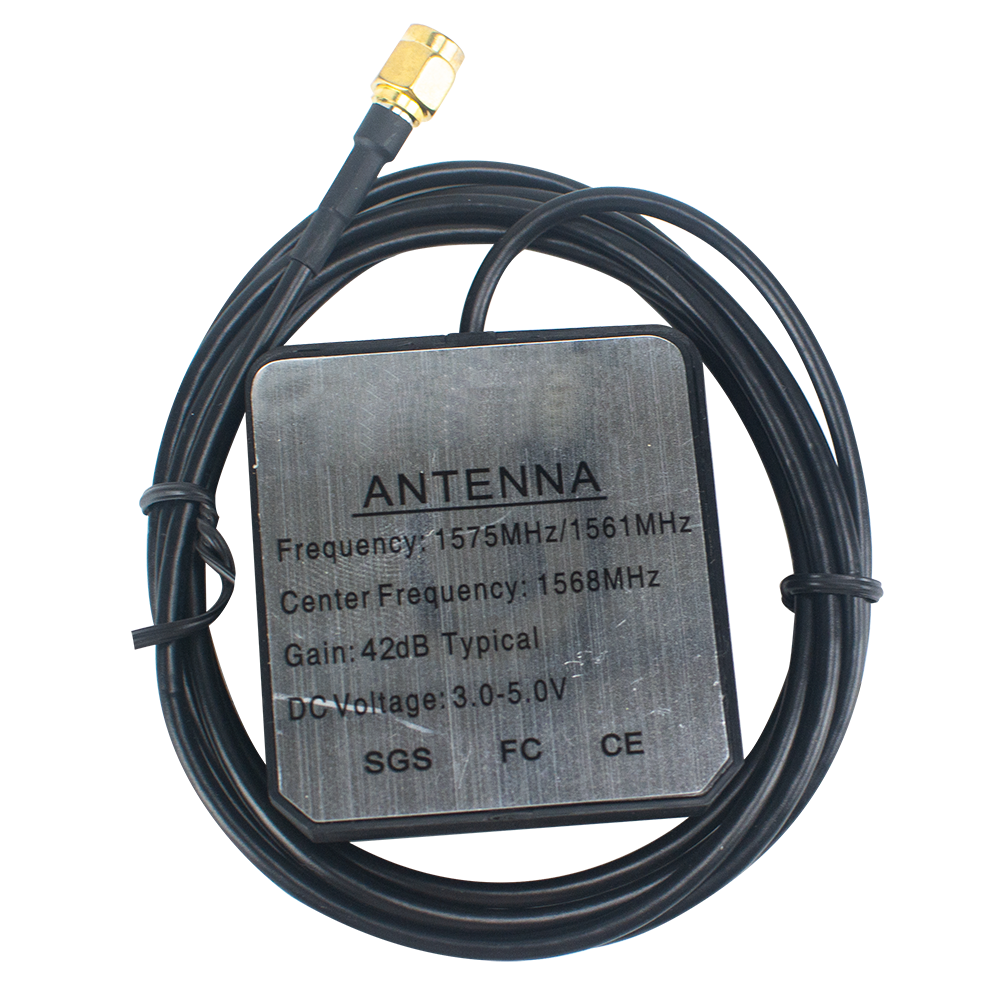

GPS antenna
